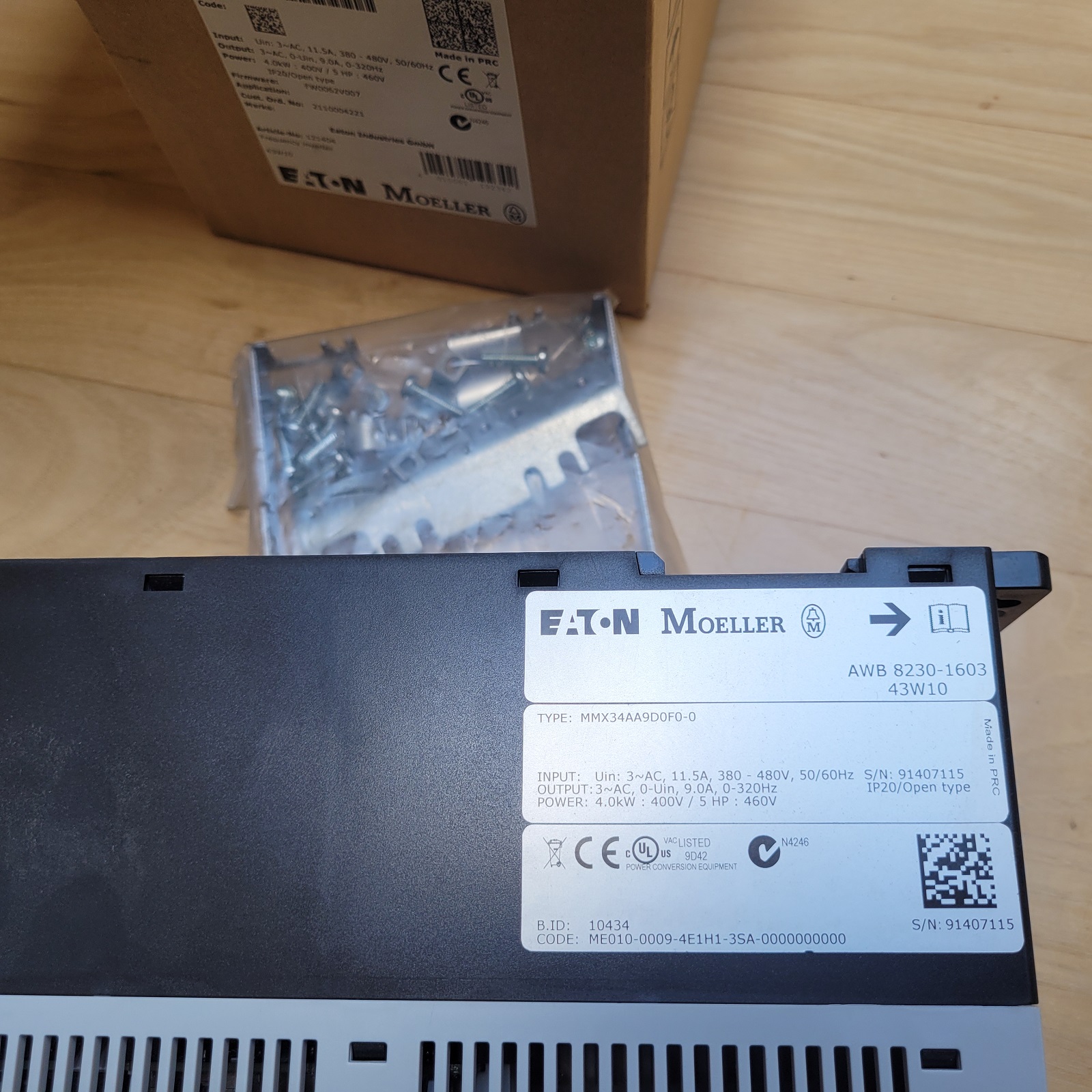

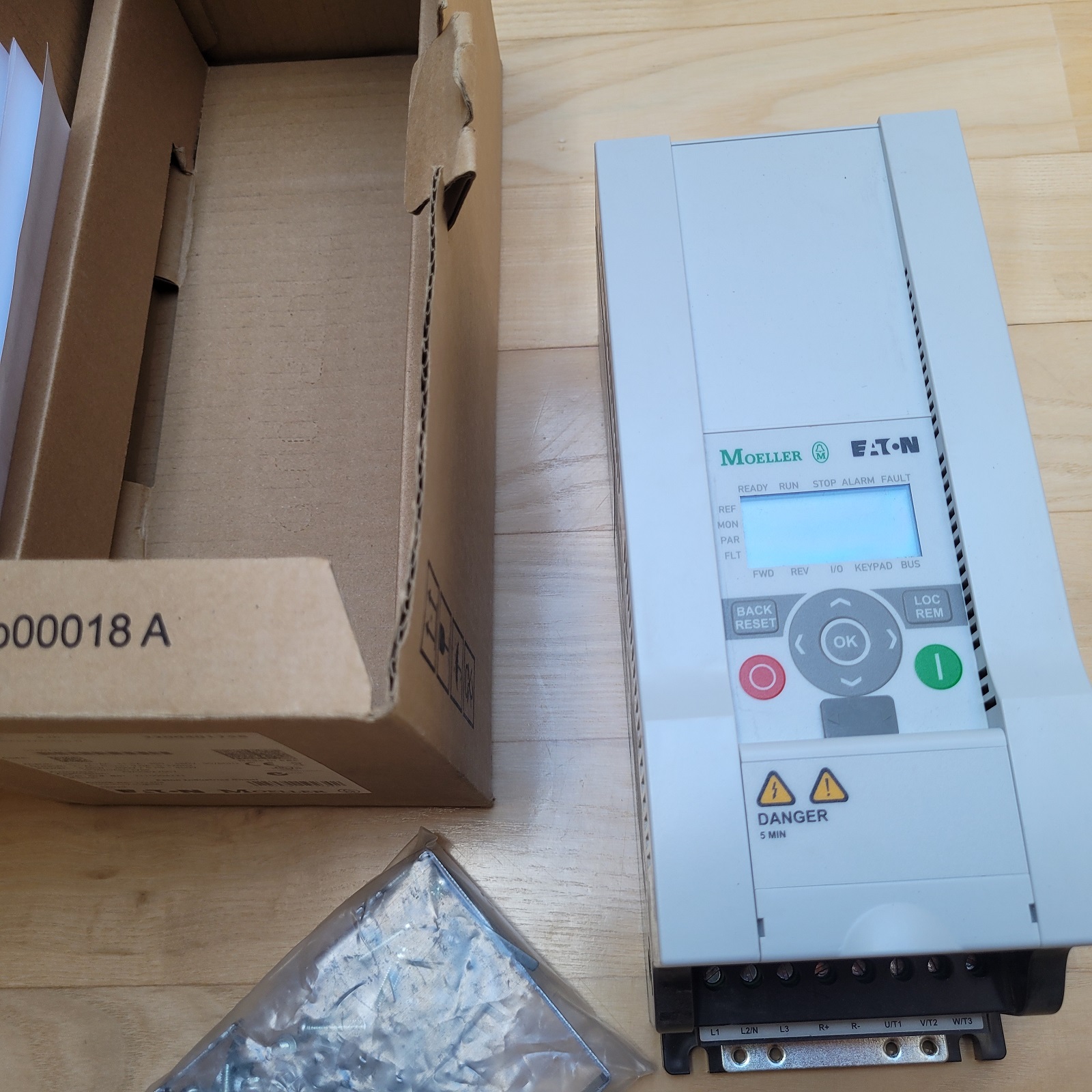

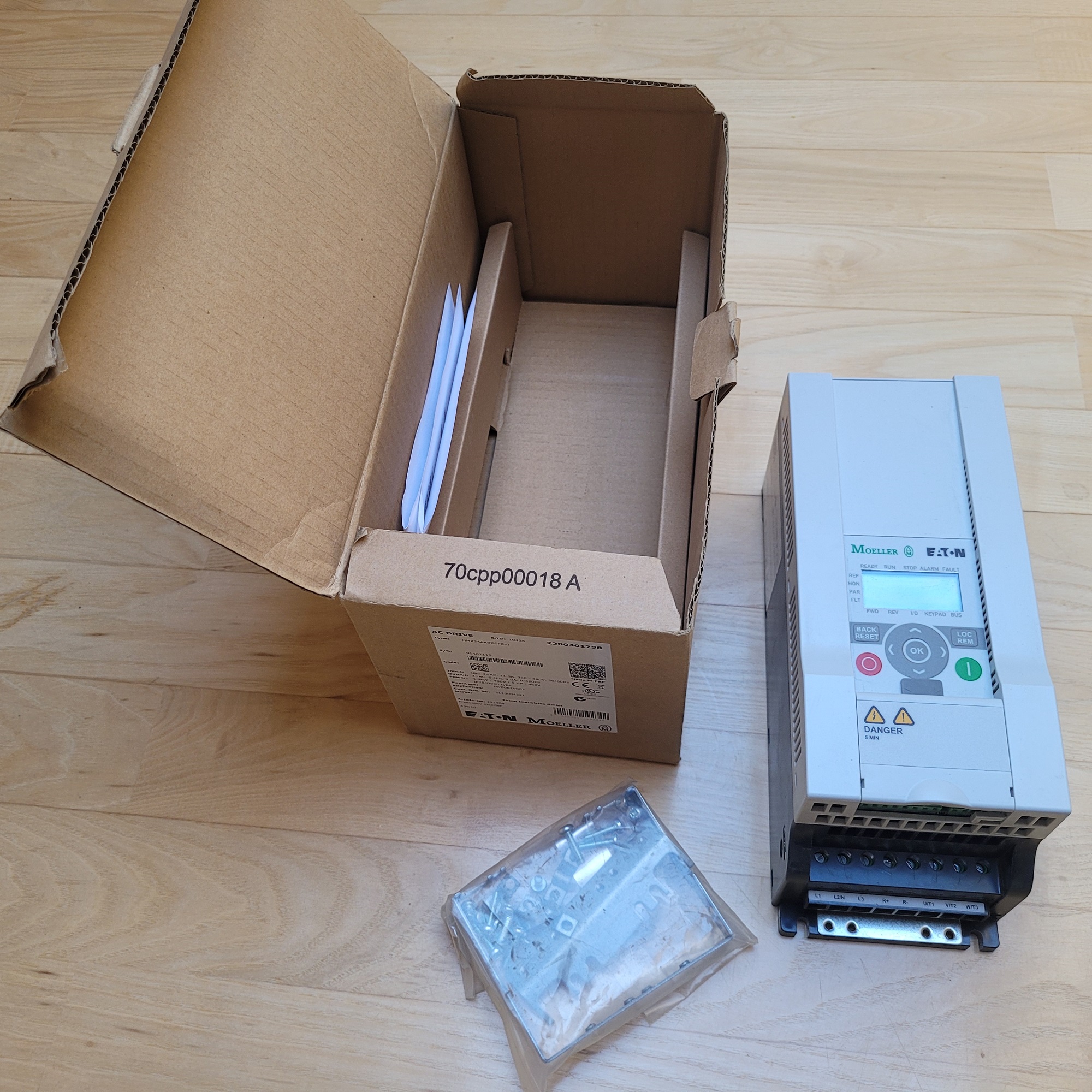

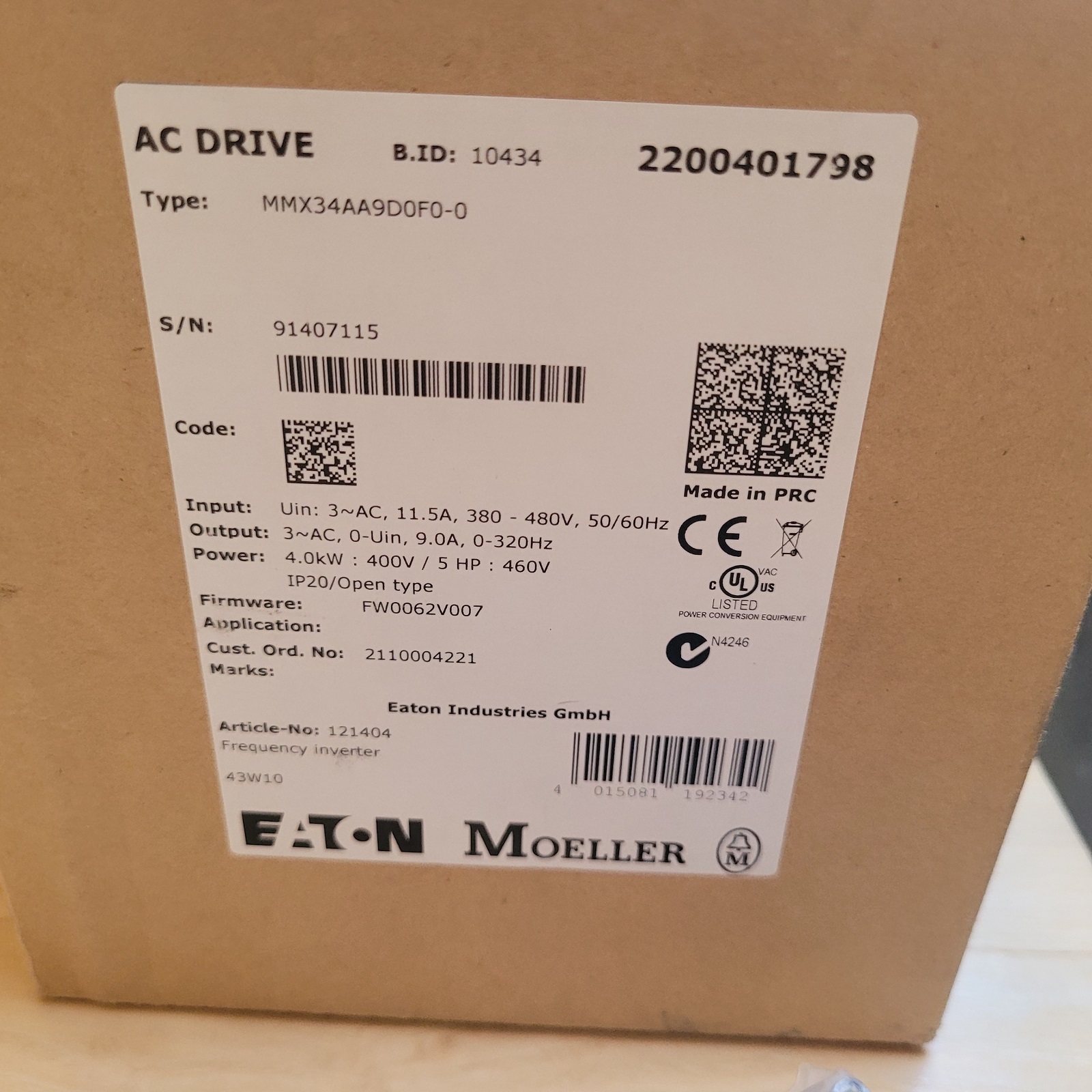

700003 EATON Adjustable Frequency AC Drive

Eaton MMX34AA9D0F0-0 Adjustable Frequency AC Drive, 380-480VAC Supply Voltage, 5 HP Power Rating, 9A Input Current

 Ease of Use ‑ Preset Application Macros, Startup Wizard, Diagnostic Capabilities

Compact, Space‑Saving Design

Rugged and Reliable ‑ 150% for One Minute, 50C Rated, Conformal Coated Boards

DIN Rail and Screw Mountable

Side‑by‑Side Installation

Eaton's M‑Max Series Sensorless Vector Adjustable Frequency AC Drives are the next generation of drives specifically engineered for today's machinery applications. These microprocessor‑based drives have standard features that can be programmed to tailor the drive's performance to suit a wide variety of application requirements. The M‑Max product line uses a 32‑bit microprocessor and insulated gate bipolar transistors (IGBTs) that provide quiet motor operation, high motor efficiency, and smooth low‑speed performance. The size and simplicity of the M‑Max make it ideal for hassle‑free installation.

 The standard drive includes a digital display, and operating and programming keys on a visually appealing, efficient application programming interface. The display provides drive monitoring, as well as adjustment and diagnostic information. The keys are used for digital adjustment and programming of the drive, as well as for operator control. Separate terminal blocks for control and power wiring are provided for customer connections.

 Industry Leading Efficiency Delivers Energy Savings to the Customer

Integrated EMC Filters Make the Unit Suitable for Commercial and Industrial Networks

Temperature‑Controlled Fan

RS‑485/Modbus as Standard

PID Controller as Standard

Several Fieldbus Options

 Factory overstock
