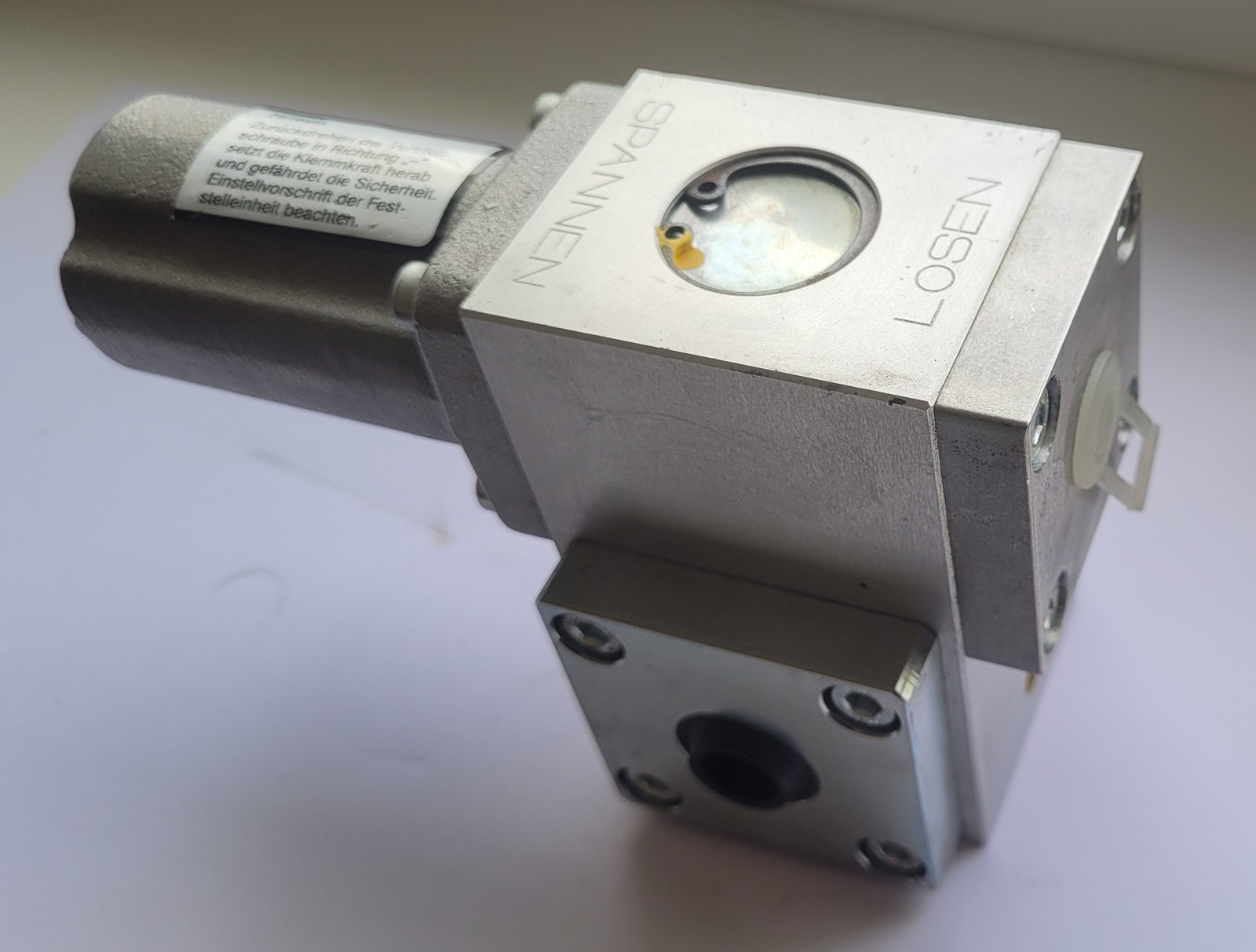

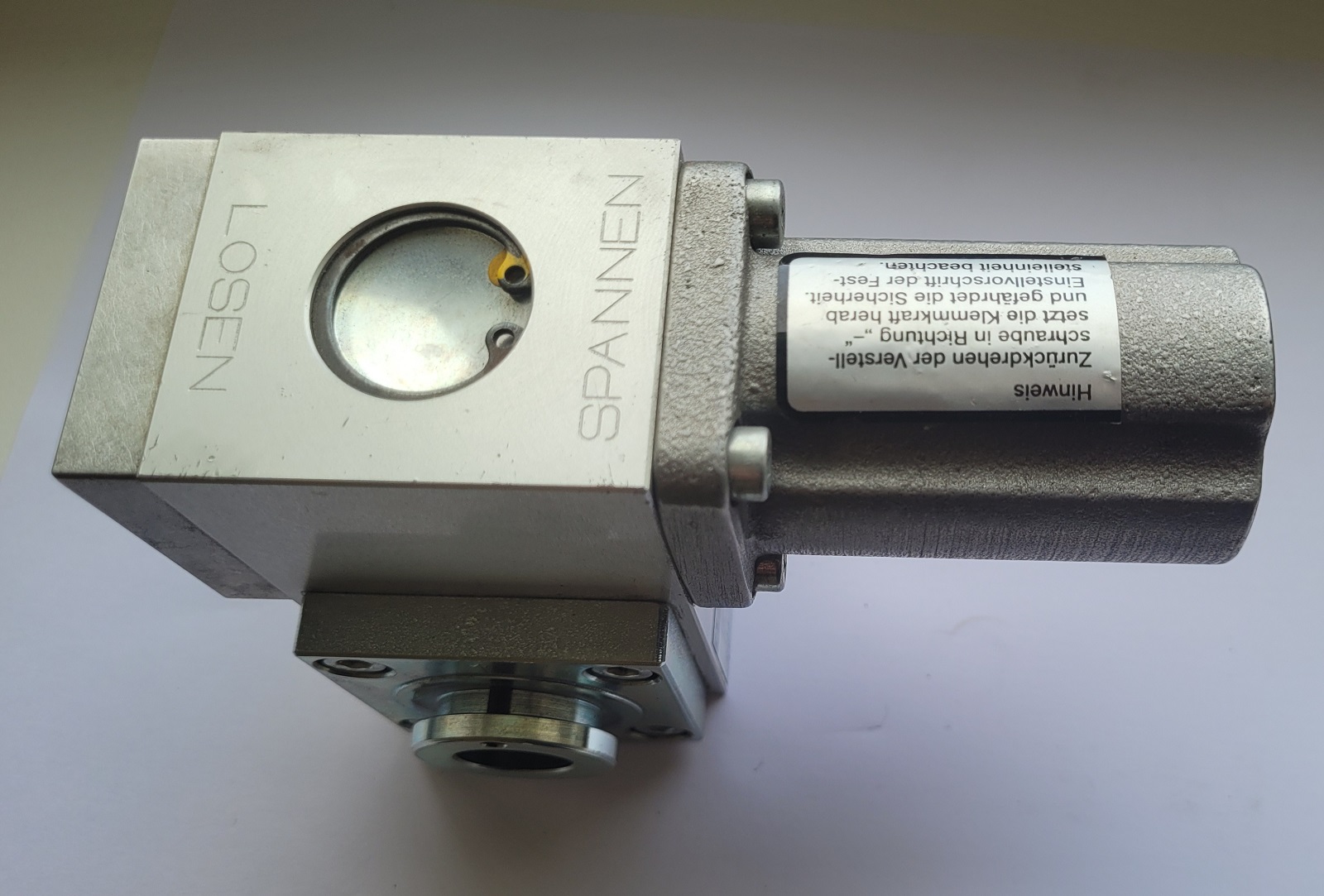

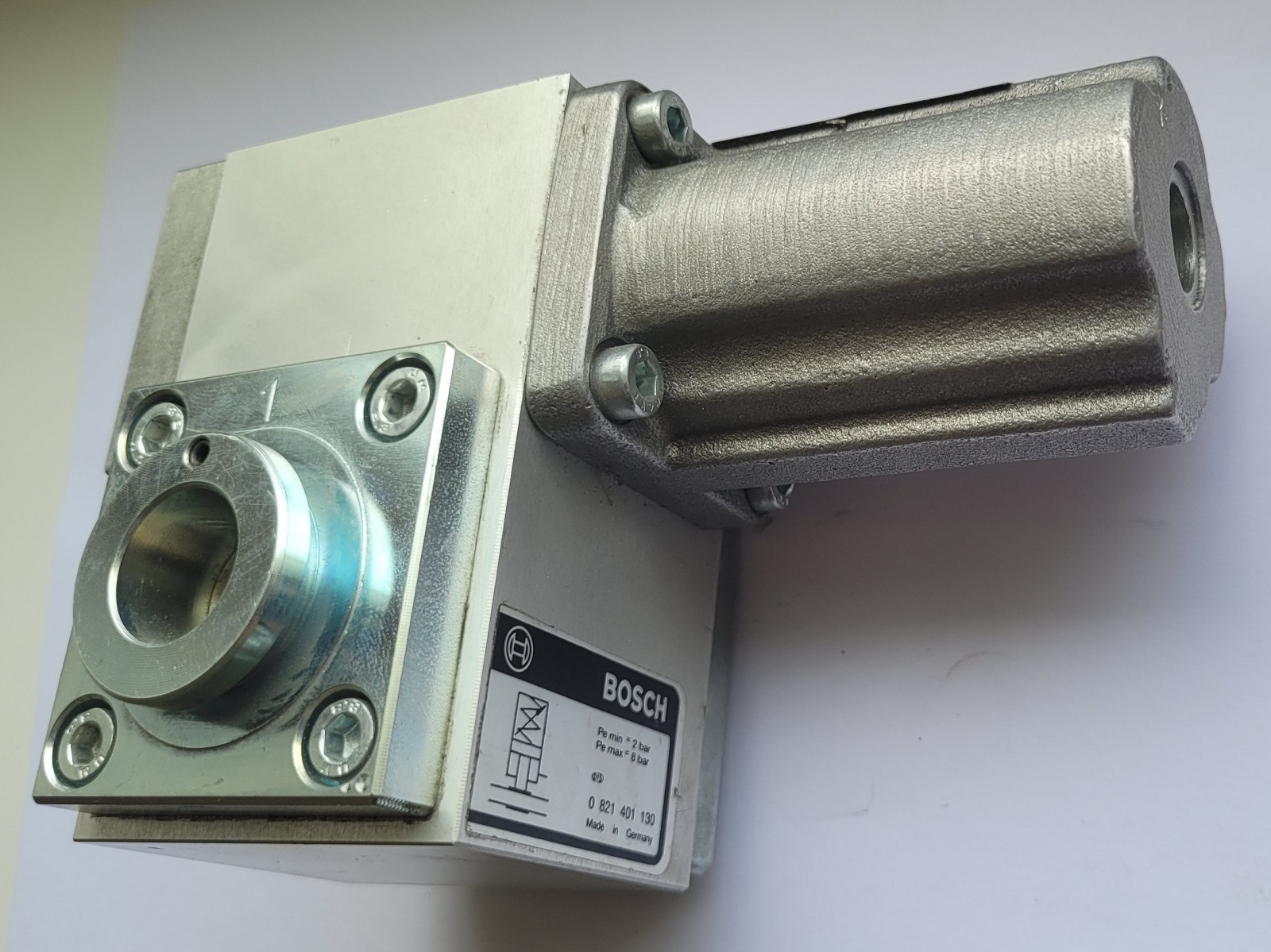

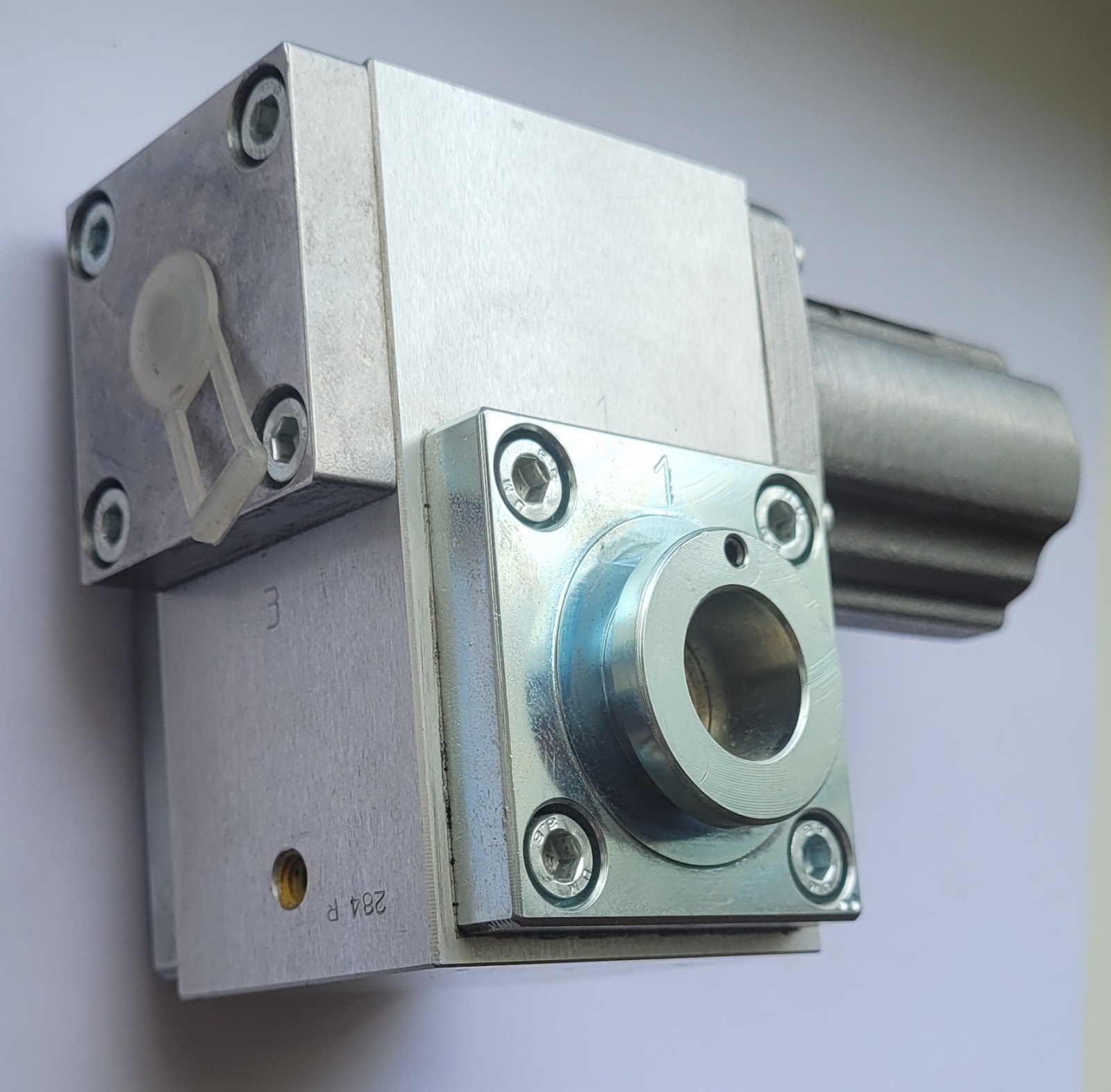

700019 BOSCH AVENTICS Locking unit

BOSCH AVENTICS 0821401130 Locking unit, Series LU1, brand new

Brand new, never used, factory stock clearance

 Function - clamp with eccentric tappet

Function - hold: adjustable spring force, Release: compressed air

Piston Ø32 mm

Suitable piston rod Ø12 mm

Piston rod extension 79 mm

Compressed air connection G 1/8

Release pressure min.2 bar

Release pressure max.8 bar

Min. medium temperature -20 °C

Max. medium temperature 80 °C

Medium Compressed air

Max. particle size 5 µm

Min. ambient temperature -20 °C

Max. ambient temperature 80 °C

Oil content of compressed air min 0 mg/m³

Oil content of compressed air max 5 mg/m³

Static holding force 840 N

Weight 1.75 kg

Housing Aluminum

Cover Die-cast aluminum
