700027 EUROTHERM DC Drive Inverter

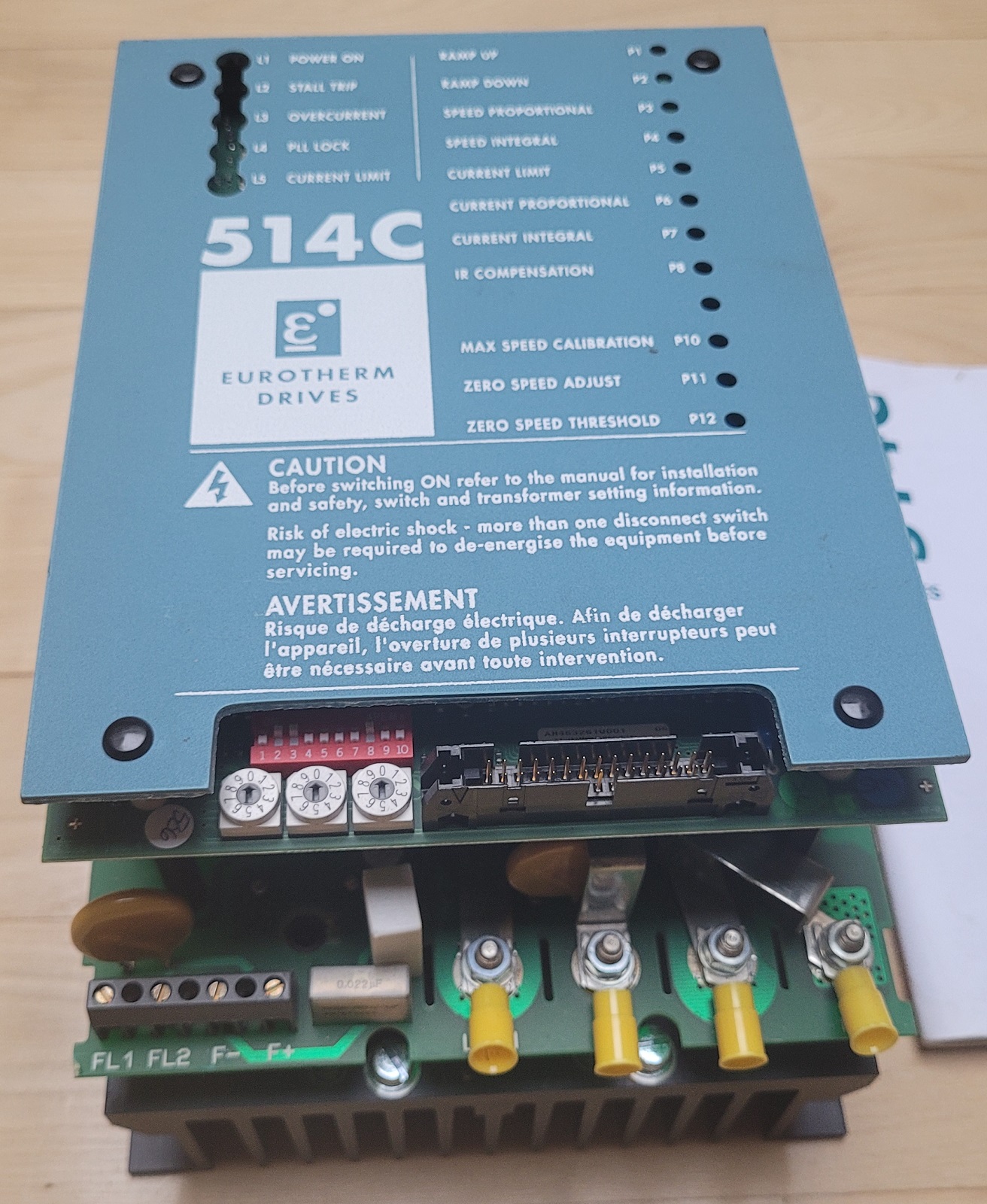

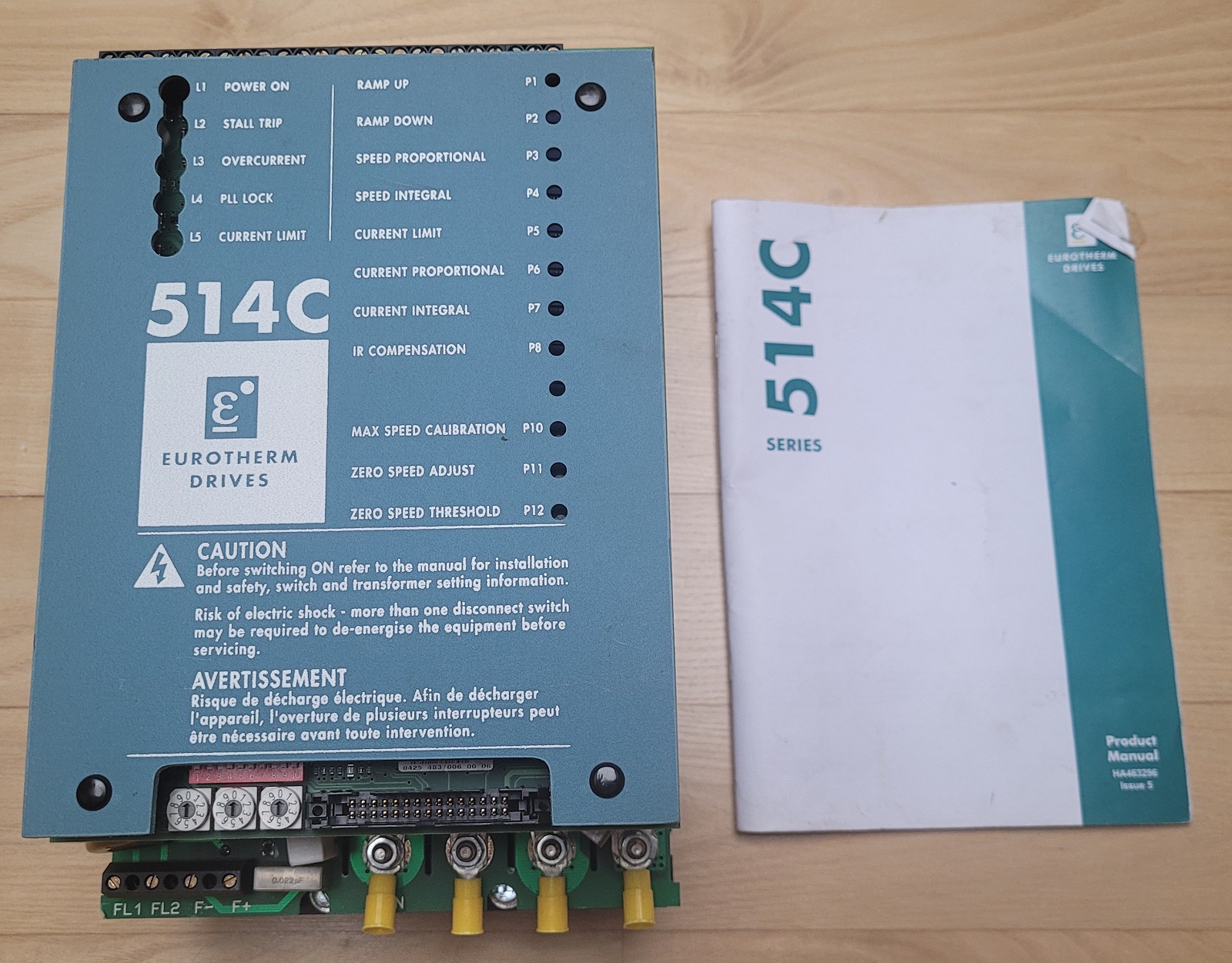

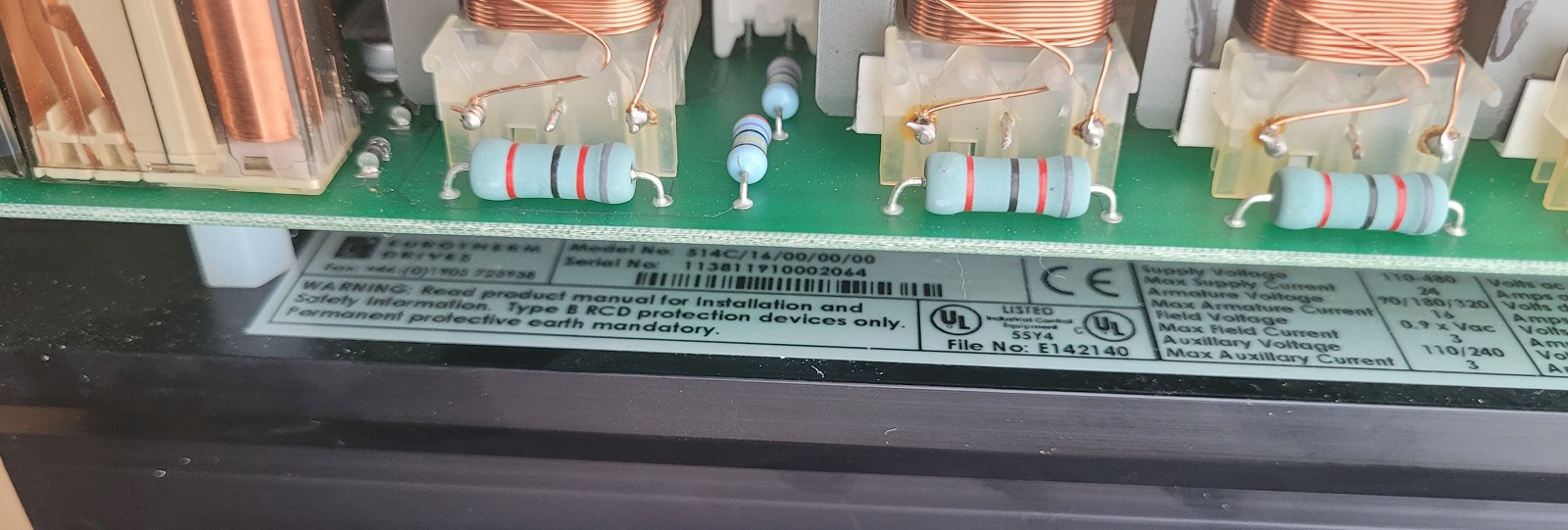

Eurotherm 514C/16/00/00/00 DC Drive Inverter, brand new

110-480 VAC 1-Phase

Description

The regenerative 514C DC drive offers full four-quadrant control of DC motors from single phase supplies. As such it is ideal for applications involving overhauling loads or where rapid and accurate deceleration is required.

TECHICAL SPECIFICATIONS

Switch Selectable Supply Power

Single Phase 110Vac ±10%

Single Phase 220Vac ±10%

Single Phase 380Vac ±10%

Single Phase 480Vac ±10%

50-60Hz ±5%

Ambient Temperature 0-40°C

TECHNICAL CHARACTERISTICS

Motor Protection

Stall condition 15 seconds internal

Electronic Overload Protection

Overload 150% for 60 seconds

INPUTS/OUTPUTS

Analogue Inputs

Ramp input

Reference input - positive

Reference input - negative

Tachometer feedback

Current limit

Current reference

Minimum speed

Thermistor input

Analogue Outputs

Speed

Load

Current reference

Ramp output

Total reference

Total reference inverted

Reference supplies ±10V DC and +24VDC

Digital Inputs

Run (Active)

Stall enable

Digital Outputs

Zero speed

At stall condition

Healthy

 INTERNATIONAL CODE

The 514C series drive complies with UL508C and complies to standard code when installed in accordance to manufacturers installation manual.

EN50178 (Protection Low Voltage Directive)

EN50081-1 (1992) (Emission in ambient EMC)

EN50082-2 (1995) (Immune in industrial EMC environment)

Complies with CE, UL e c-UL

Isolated input Circuitry

Multiple inputs for reference speed/current

Integrated pilot relay for main contactor

Integrated Field Supply

Extremely linear control loops

Line reactors for European and North American markets (UL-CSA)
